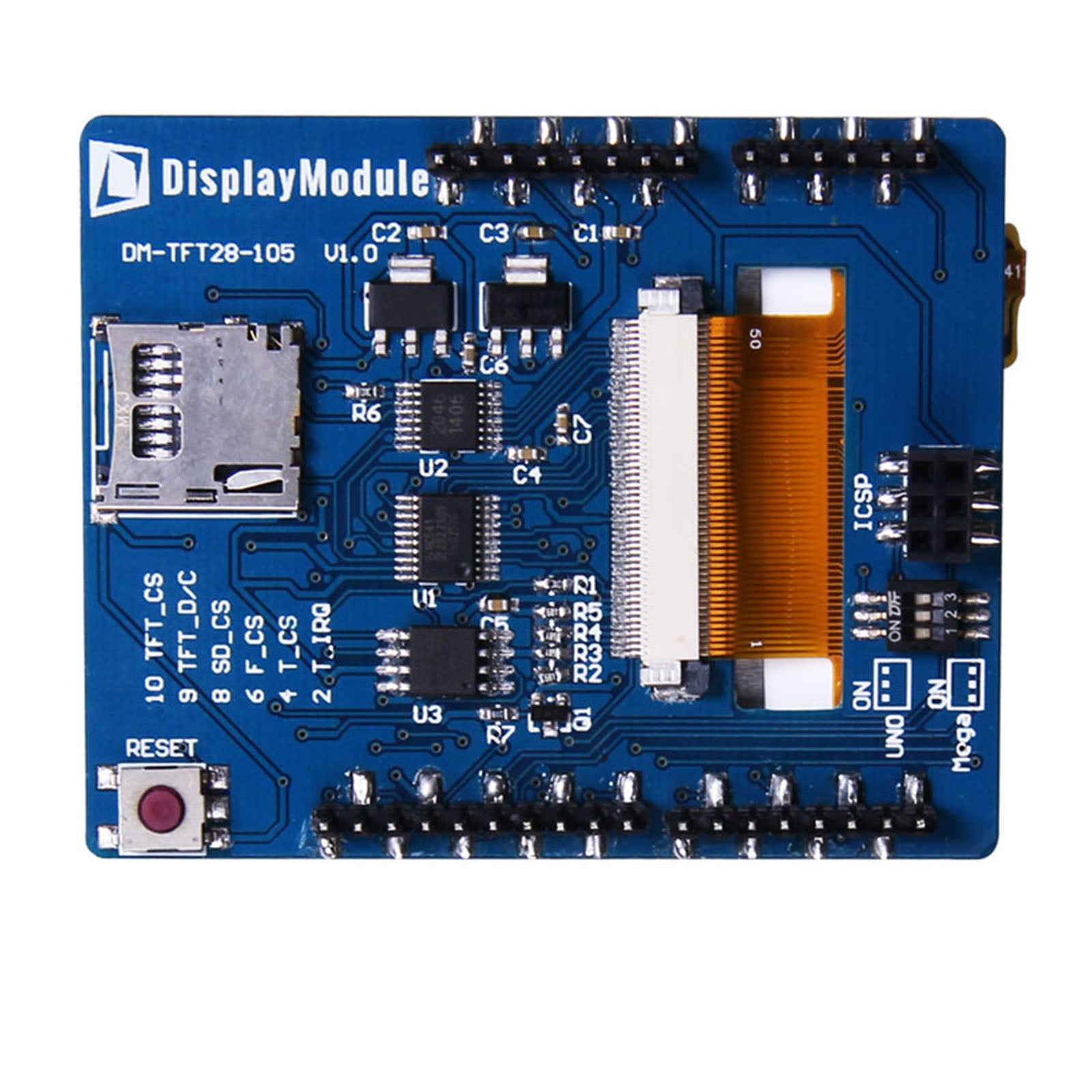

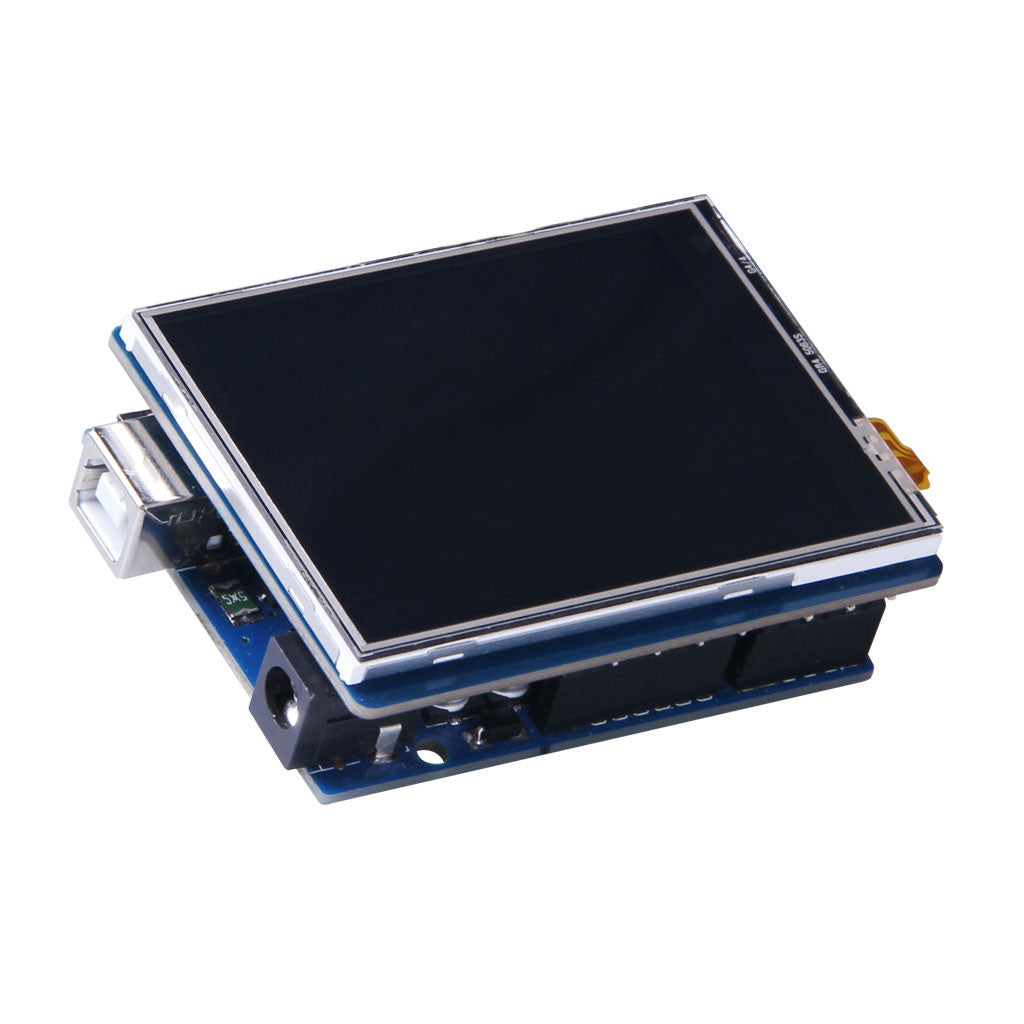

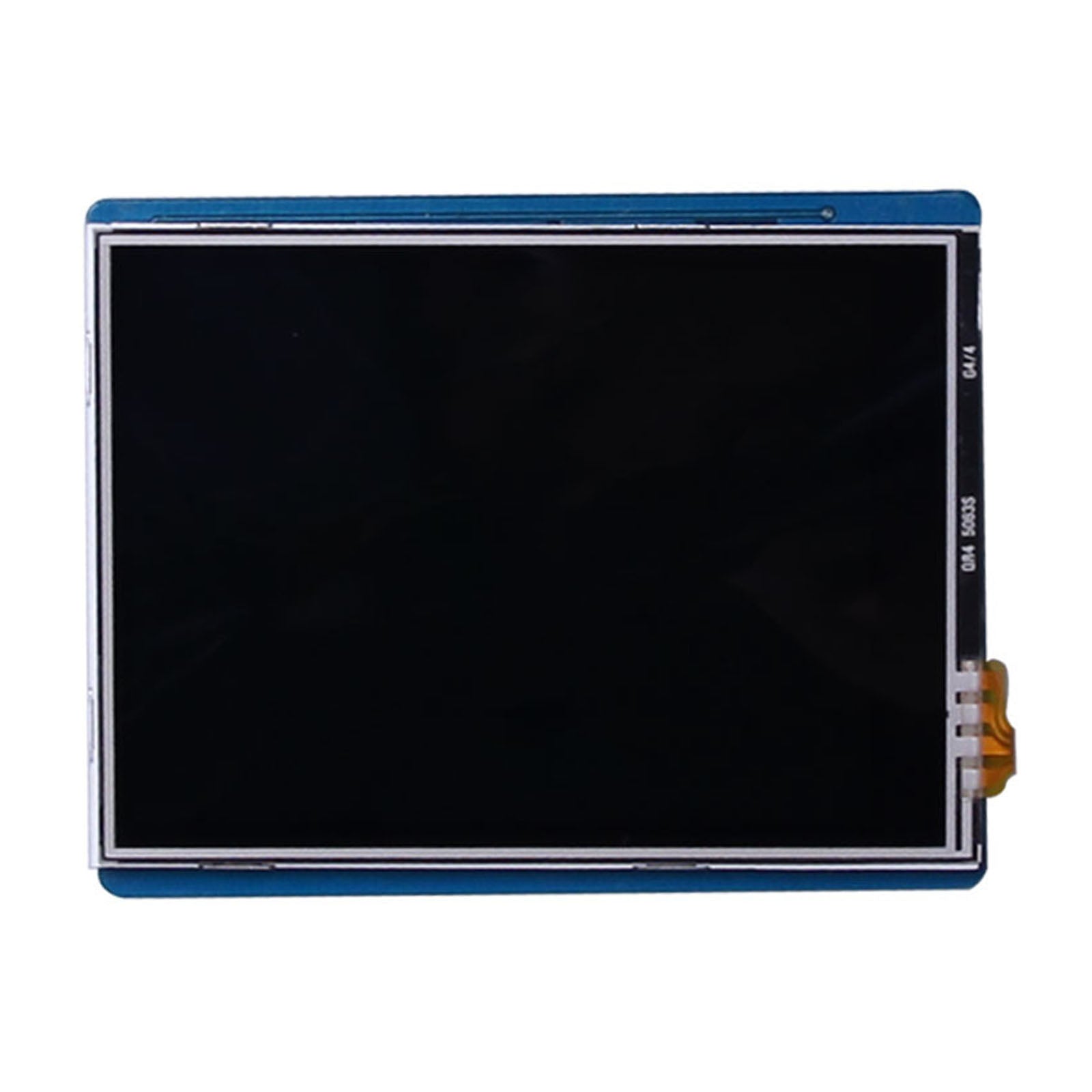

2.8" 240x320 TFT Display Module with Resistive for Arduino & mbed - SPI, 4MB Flash
2.8" 240x320 TFT Display Module with Resistive for Arduino & mbed - SPI, 4MB Flash
SKU:DM-TFT28-105
Regular price
$59.00 USD
Regular price
$35.99 USD
Sale price
$59.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| 1 pcs | original price |
| 5 pcs | 8% off |
| 10 pcs | 10% off |
Shipping
Shipping
Standard and expedited shipping available, free expedited shipping over $600. Lenrn more
Easy Returns
Easy Returns
No need to worry about buying products that don't fit your design, we offer a 30-day no-questions-asked return service.
More Order, More Save
More Order, More Save
The higher the quantity ordered, the greater the discount, so contact us for the discount price! Contact us
Share
Display Specifications
- Diagonal Dimension : 2.8 inch
- Resolution : 240x320 pixel
- View Direction : -
- Touch Mode : None
- Module Dimension : 70.10x55.14mm
- Viewing Area : 43.2(W) 57.6(H)mm
- Supply Voltage : 5.0 V
- Interface : SPI
- Luminance : 240 cd/m2
- Drive IC : Ilitek ILI9341,XPT2046
- Operation Temperature : -20℃~70℃
- Storage Temperature : -30℃~80℃
Dimensions
Resources
DM-TFT28-105 Datasheet
XPT2046 Touch Controller Datasheet (0.9MB)
ILI9341-V1.10 Display Controller Datasheet
Winbond W25Q32BV-Rev1 32 Megabit SPI Flash memory Datasheet
Please Note!
Because UTFT uses software SPI, the speed is slower than using DmTftLibrary and it require exclusive access to the SPI pins. This also means UTFT can't be used at the same time as UTouch or other Touch libraries.
DM-TFT28-105 2D Back Autocad drawings
You can use IGC's Brava! free DWG viewer to view the drawings
XPT2046 Touch Controller Datasheet (0.9MB)
ILI9341-V1.10 Display Controller Datasheet
Winbond W25Q32BV-Rev1 32 Megabit SPI Flash memory Datasheet
Source code and examples can be found in our DmTftLibrary and its User Guide.
We have mbed support for this displays, look at our mbed page for more information.
If you prefer UTFT/UTouch have a look at this page for instructions.
Please Note!
Because UTFT uses software SPI, the speed is slower than using DmTftLibrary and it require exclusive access to the SPI pins. This also means UTFT can't be used at the same time as UTouch or other Touch libraries.
Schematics
DM-TFT28-105 Schematics (48KB, Dec 2013)Drawings
DM-TFT28-105 2D Front Autocad drawingsDM-TFT28-105 2D Back Autocad drawings
You can use IGC's Brava! free DWG viewer to view the drawings
