AR Optical Module 1920x1080 Vertical
This advanced AR Optical Waveguide Module delivers exceptional augmented reality experiences with high-resolution visuals and wide field of view. Featuring a compact LCOS display and precision optical engineering, it enables seamless integration into AR glasses and head-mounted displays.
Designed for next-generation AR applications, this optical module combines waveguide technology with high-performance LCOS microdisplay to deliver crisp, vibrant images with minimal distortion. The compact form factor makes it ideal for wearable AR devices.
- Waveguide Technology: Thin transparent layers bend and reflect light to project virtual images with minimal bulk.
- High-Resolution LCOS: 0.55-inch LCOS display with 1920×1080 RGB resolution and 6.4μm pixel size.
- Wide Compatibility: Supports 4-lane MIPI or LVDS input signals for flexible integration.
- Extended Eye Box: 12mm height × 10mm width eye movement range with 22mm exit pupil distance.
| Parameter | Specification |
|---|---|
| Field of View | 40°=35.2°(H)×20.2°(V) |
| Focal Length | 21.5 mm |
| F/# | 0.51 |
| Image Source | 0.55" LCOS 1920×1080 RGB 6.4μm/pixel |
| Eye Movement Distortion | < 10' @max field |
| Brightness | 1000 nits |
| Contrast Ratio | 200:1 (FOFO) |
| Exit Pupil Distance | 22 mm |
| Eye Movement Range | 12mm Height × 10mm Width |
| Transmittance | >85% |
We offer customized AR/VR module solutions tailored to your specific requirements, from prototyping to mass production.
- Custom Development: Tailor optical modules to your specific form factor, performance, and interface requirements.
- Bulk Procurement: Volume pricing for OEMs and system integrators with consistent quality assurance.
- Technical Support: Comprehensive engineering support throughout integration and production phases.
- White-Label Options: Private labeling available for resellers and brand owners.
Remote assistance, training, and visualization applications for industrial, medical, and field service professionals.
Lightweight AR glasses for entertainment, navigation, and information display in everyday scenarios.
Immersive learning experiences with interactive 3D content and virtual information overlay.
This optical module is designed for seamless integration with a wide range of systems and platforms.
- Display Interface: Compatible with 4-lane MIPI or LVDS input signals

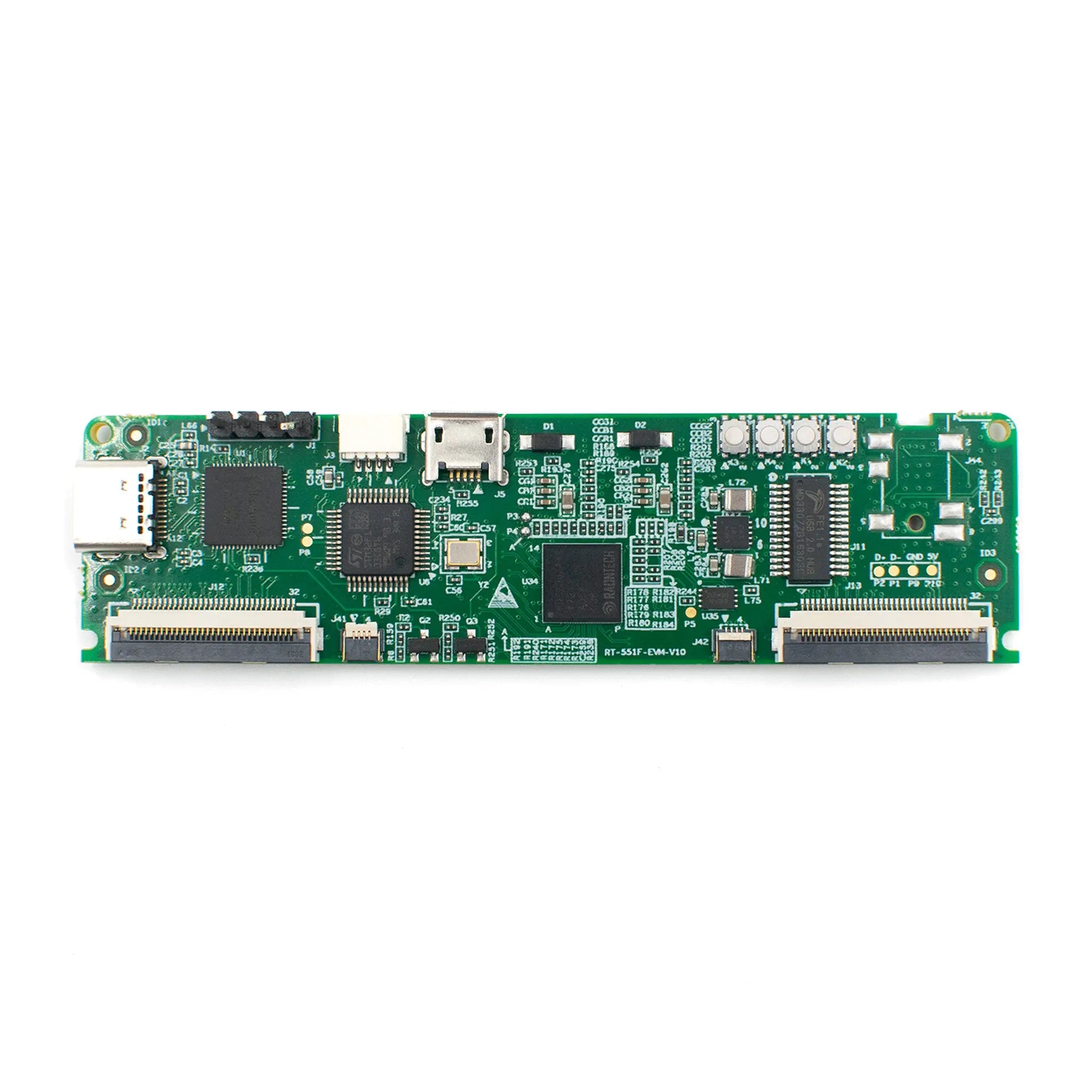

- Driver Compatibility: Works with RDC200A driver chip (supports dual-screen operation)
- Backlight Options: Supports recommended LED driver ICs (ISL97901 or LM3435)
- Connector Types: I-PEX 20586 (0.5mm Pitch FPC) for LCOS, SM04B-SURS-TF for LED backlight
Development Documentation: Comprehensive resources including datasheets, design guides, and reference schematics.
Available Resources: Product Datasheet • Schematic PDF • Schematic DSN • CAD File
ARM-105 Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Field of View | 40°= 35.2°(H)×20.2°(V) |
| Focal Length | 21.5 mm |
| F/# | 0.51 |
| Image Source | 0.55” LCOS 1920 x 1080 RGB 6.4um/pixel |
| Eye Movement Distortion | < 10' @max field |
| Brightness | 1000 nits |
| Contrast Ratio | 200:1 (FOFO) |
| Exit Pupil Distance | 22 mm |
| Eye Movement Range | 12mm Height x 10 mm Width |
| Transmittance | > 85% |
Drive Workflow
Power up each power supply in sequence
Reset the RDC200A chip
Start inputting MIPI or LVDS signals
Enable the LED driver IC
Initialize and light up the LED driver IC with configuration
LCOS pin definition
Controller inout selectselect controller inout mode and interface
MIPI input parameter settings
Structural Design
Optical Display Area
1). The display center is 17mm from the edge of the waveguide, designed to align directly with the human eye
2). 12mm high * 10mm wide
Binocular Design Explanation
1). The LOE structure of the left and right optical engine modules' waveguide lenses is designed symmetrically
2). The recommended distance between the eyeball and the LOE should not exceed 22mm
3). The recommended design value for the distance between the display centers of the left and right eyes is 64mm (corresponding to the interpupillary distance of human eyes)
