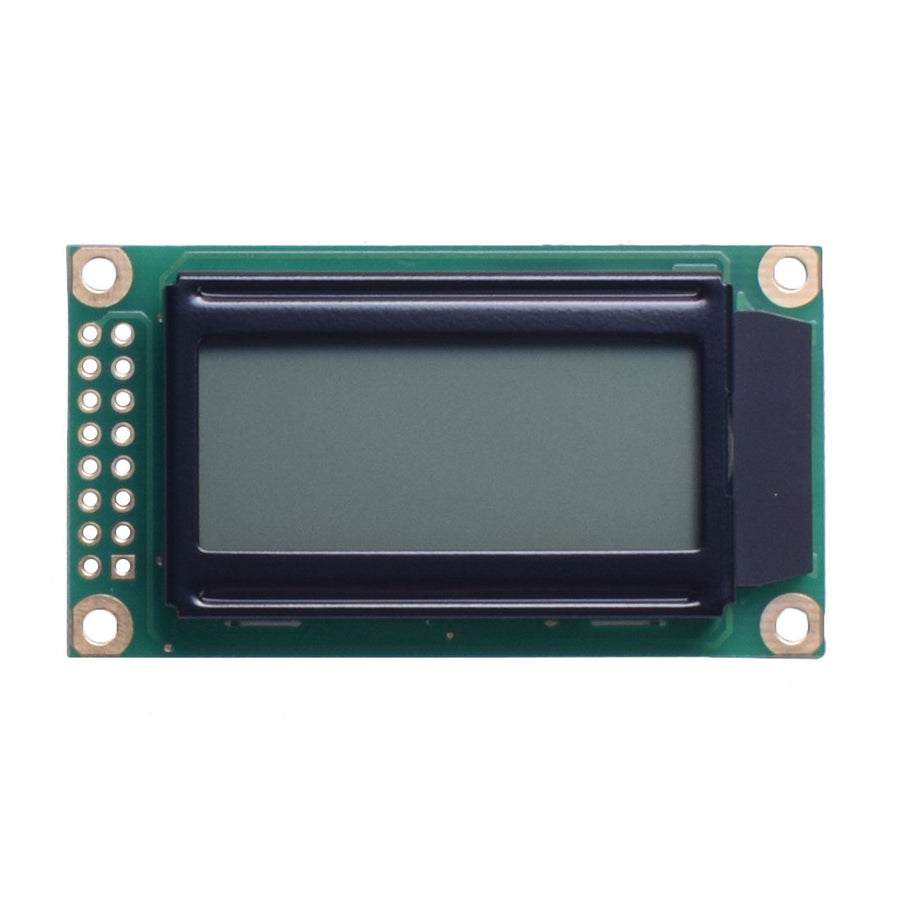

8 × 2
Compact 8×2 FSTN
- ST7066U · 6800 4/8-bit
- 58.0 × 32.0 × 13.2 mm
- White LED · 5.0 V
$8.90 sample View product →
Character LCD Modules · 8×2 to 40×2
Character LCD Display Manufacturer & Supplier
We make STN and FSTN character LCDs in our factory — 8×2 to 40×2 formats, with 6800 parallel, I2C, or SPI interface. Samples ship from stock, no MOQ. Need a custom FPC, different fonts, or a specific backlight? Just ask.
- 6800 4/8-bit · I2C · SPI
- 5.0 V / 3.3 V logic
- −20 °C to +70 °C
- From $8.90 per sample
- Datasheet + init code
Samples in stock
No MOQ on standard parts
Engineering reply in 24 h
8×2 – 40×2Standard formats
ST7066U · ST7032I · ST7036IController ICs
6800 · I2C · SPIHost interfaces
−20 °C to +70 °COperating range
0+Years in displays
0+Global markets served
0+Standard character LCD models
0%Optical + electrical tested
0hEngineering reply
What We Make
In-Stock Character LCD Modules
All of these ship from our stock. Buy one piece to check fit and brightness, then re-order the same part at volume.

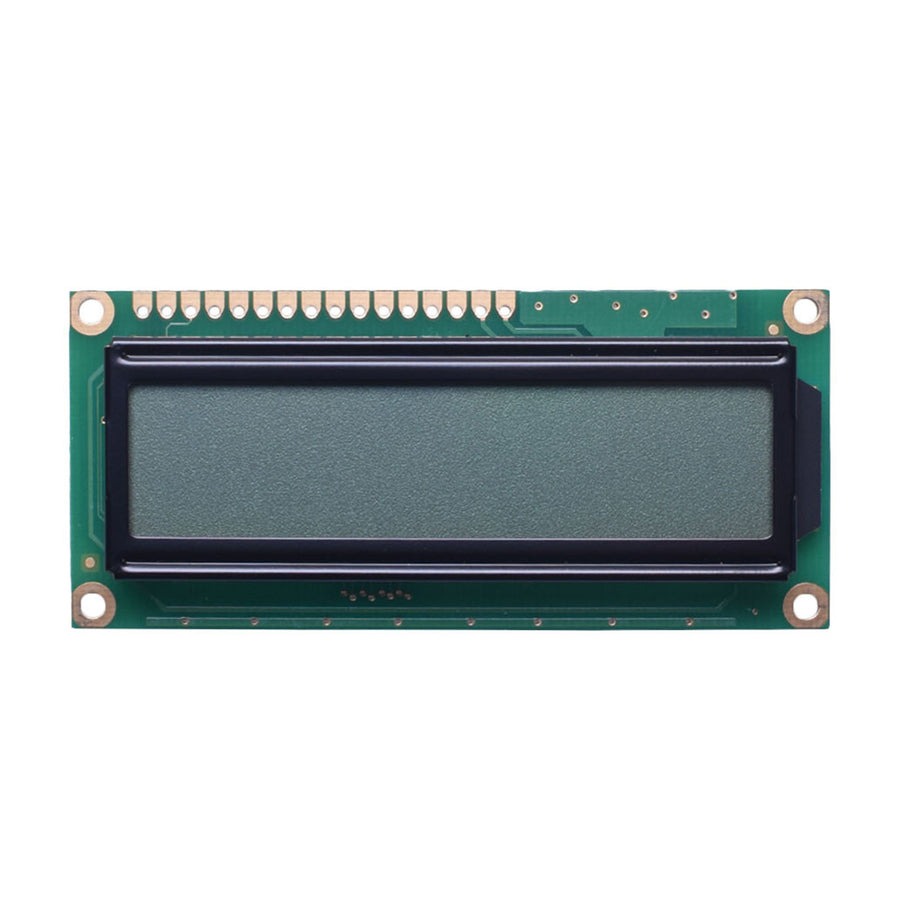

16 × 1
Single-Line 16×1 FSTN
- ST7066U · 6800 4/8-bit
- 80.0 × 36.0 × 13.5 mm
- White LED, 4.1 V / 130 mA
$12.90 sample View product →

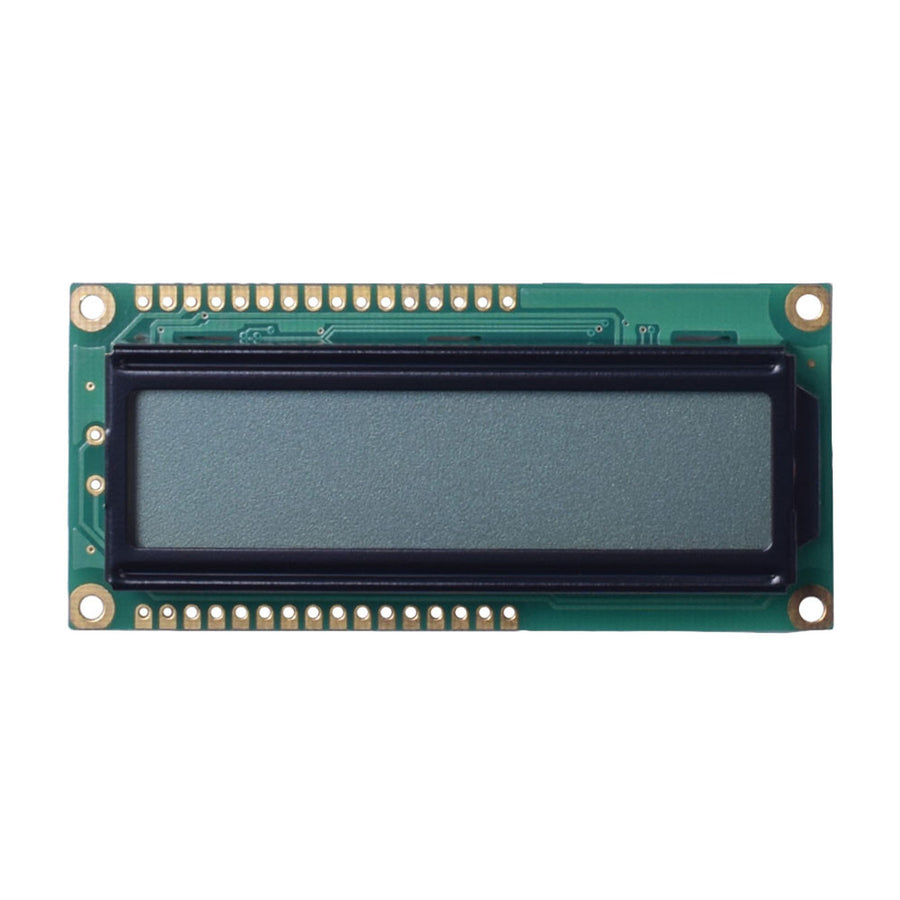

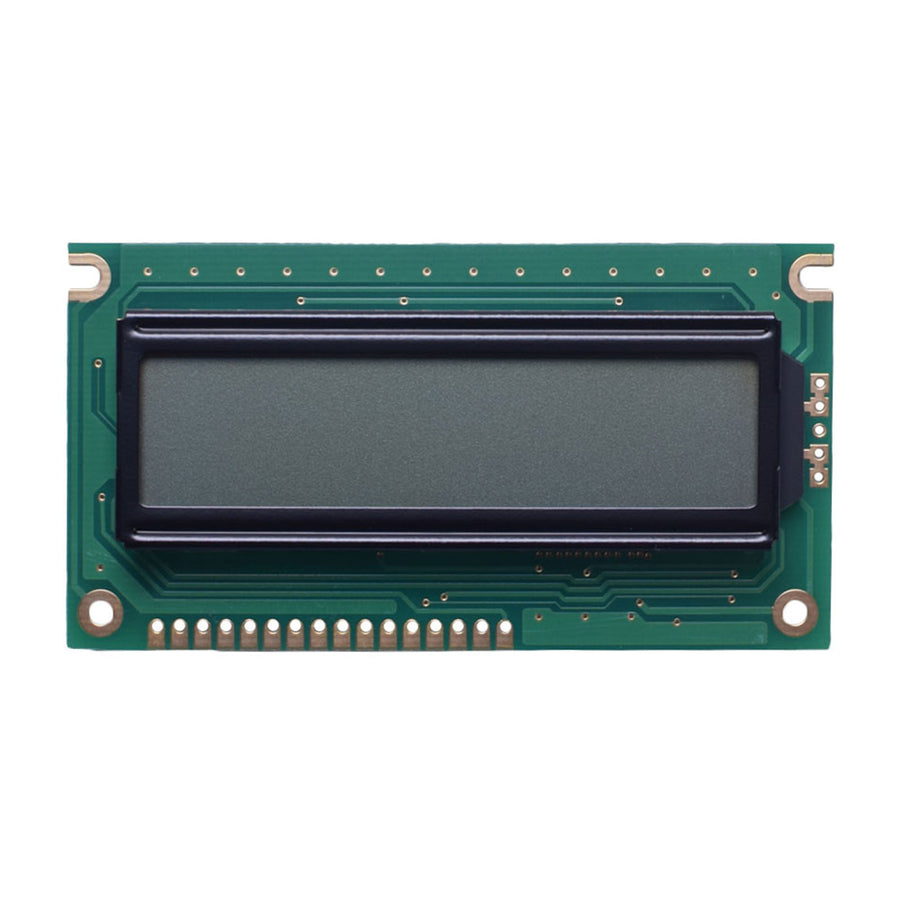

16 × 2
16×2 FSTN Positive
- ST7066U · 6800 MPU
- 80.0 × 36.0 × 13.5 mm
- White LED · 5.0 V
$12.90 sample View product →

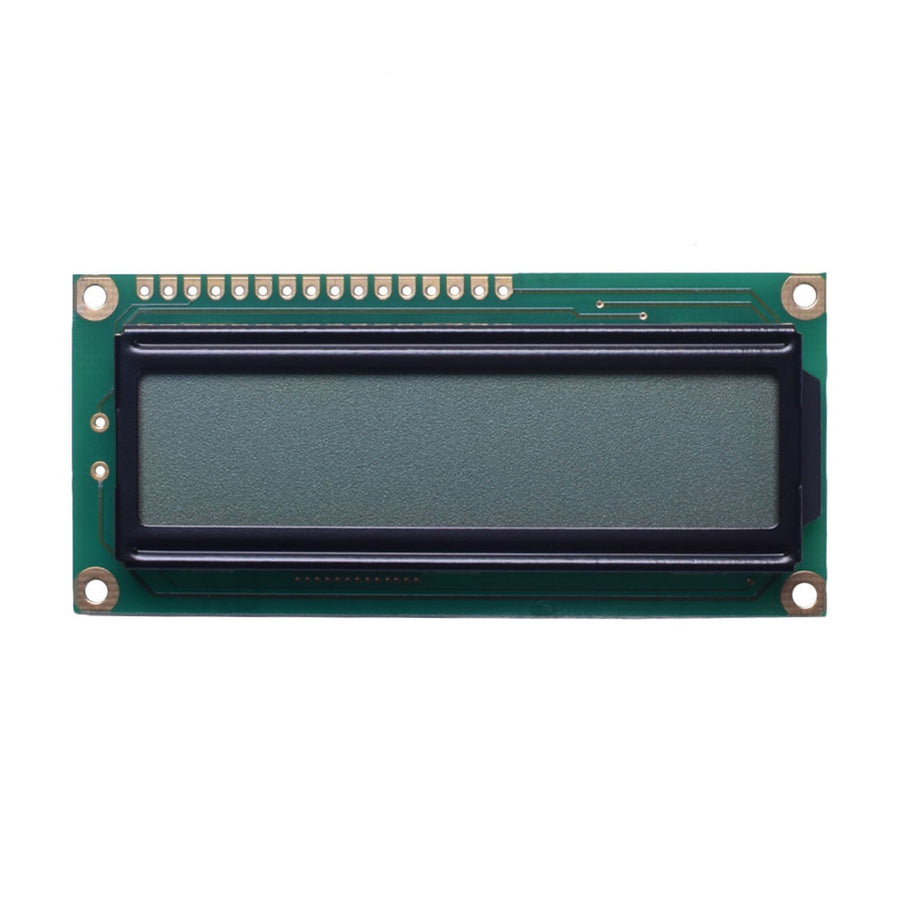

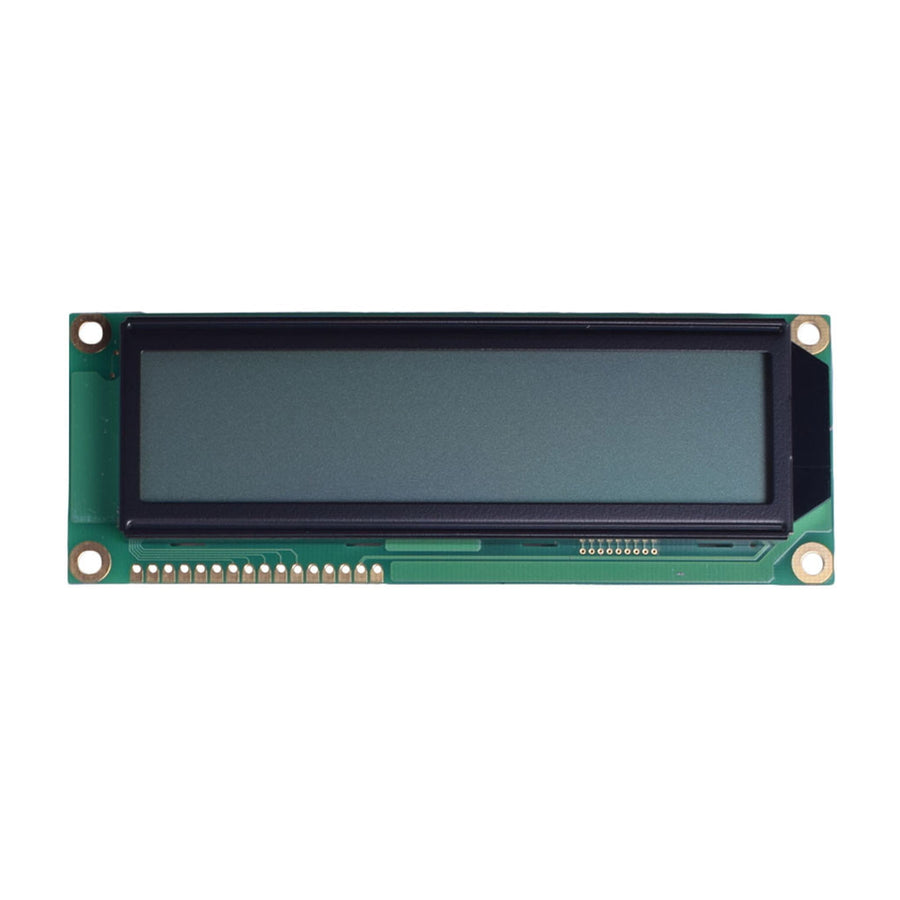

16 × 2
16×2 Japanese / European Font
- ST7066U · 6800 MPU · 5.0 V
- 80.0 × 36.0 × 13.5 mm
- JP / EU CGROM font sets
$12.90 sample View product →

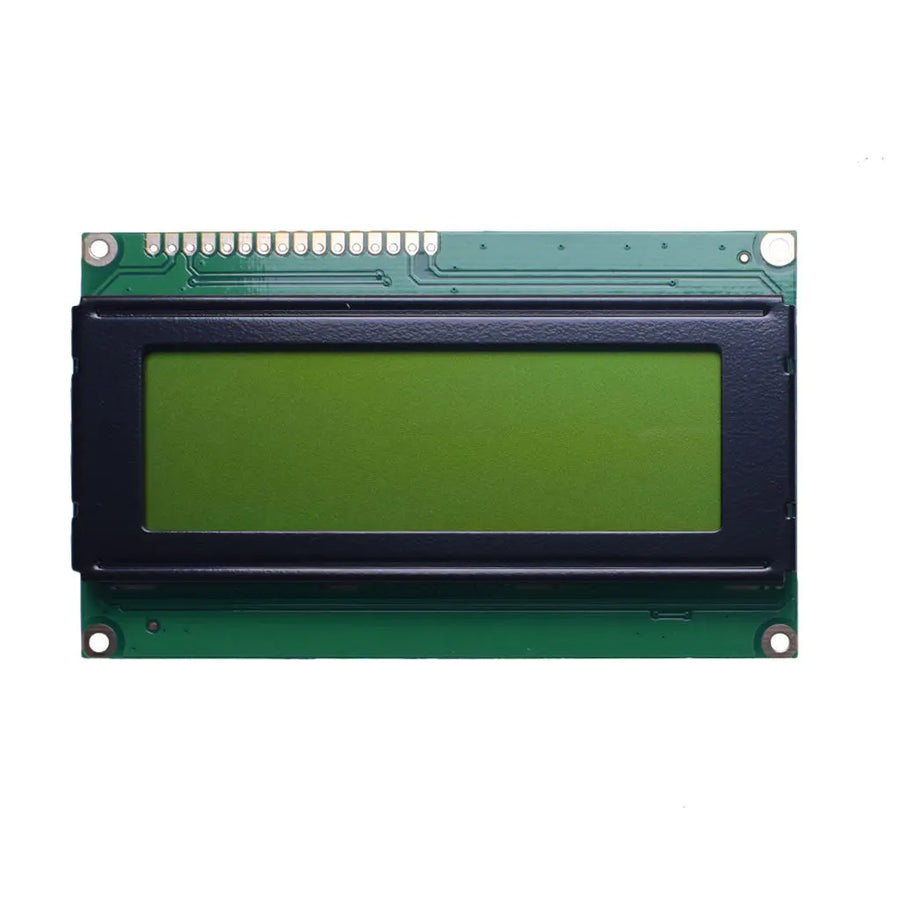

20 × 4
DM-LCD2004-442 · 20×4 Four-Line STN
- ST7066U · 6800 4/8-bit
- 98.0 × 60.0 × 13.6 mm
- Yellow-green LED · 5.0 V
$24.90 sample View product →

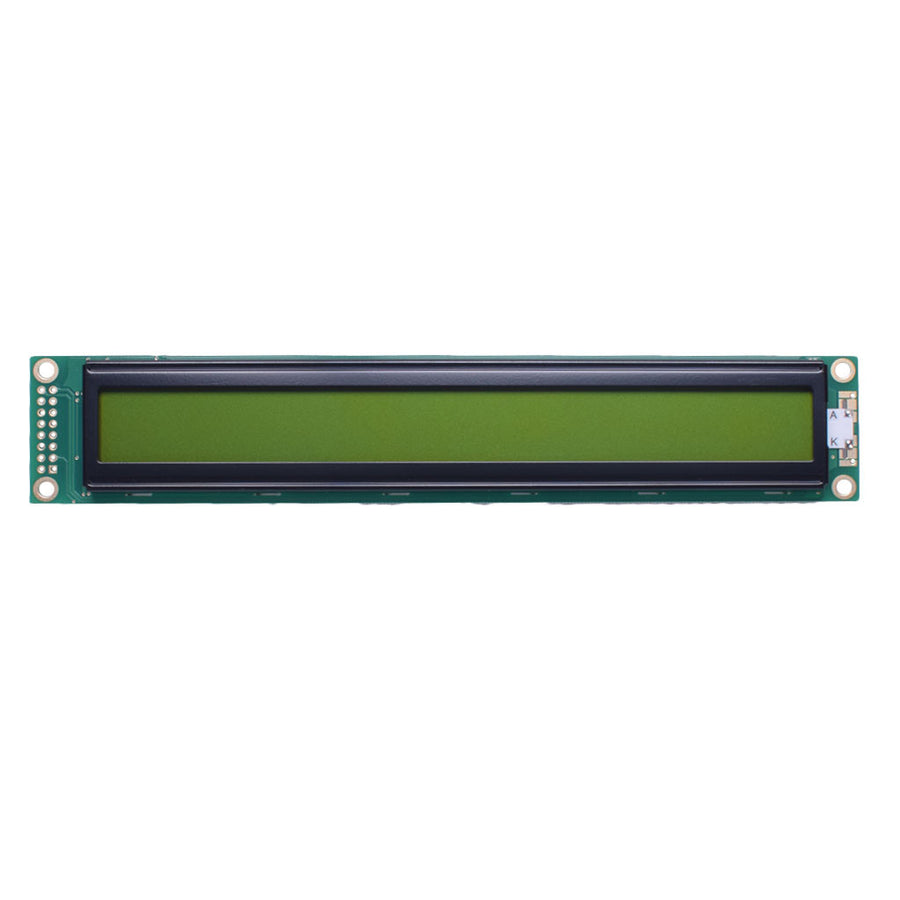

40 × 2
40×2 Wide STN
- ST7066U · 6800 4/8-bit
- Yellow-green LED · 240 cd/m² typ
- −20 °C to +70 °C
$19.90 sample View product →
Browse the Full Character LCD Range Ask for a Datasheet
20+ standard models from 8×2 to 40×2, all with datasheets and stock samples.
Quick Comparison
Compare the Standard Range
Data pulled straight from the datasheets. Use these numbers for display selection, PCB layout, and figuring out if the interface matches your MCU.
| Model | Format | Display mode | Controller | Interface | Supply | Module size | Backlight |
|---|---|---|---|---|---|---|---|
| DM-LCD0802-416 | 8 × 2 | FSTN positive, transflective | ST7066U | 6800 4/8-bit | 5.0 V | 58.0 × 32.0 × 13.2 mm | White LED |
| DM-LCD1601-412 | 16 × 1 | FSTN positive, transflective | ST7066U | 6800 4/8-bit | 5.0 V | 80.0 × 36.0 × 13.5 mm | White LED |
| DM-LCD1602-422 | 16 × 2 | FSTN positive, transflective | ST7066U | 6800 4/8-bit | 5.0 V | 84.0 × 44.0 × 13.5 mm | White LED |
| DM-LCD1602-425 | 16 × 2 | FSTN positive, transflective | ST7066U | 6800 MPU | 5.0 V | 80.0 × 36.0 × 13.5 mm | White LED |

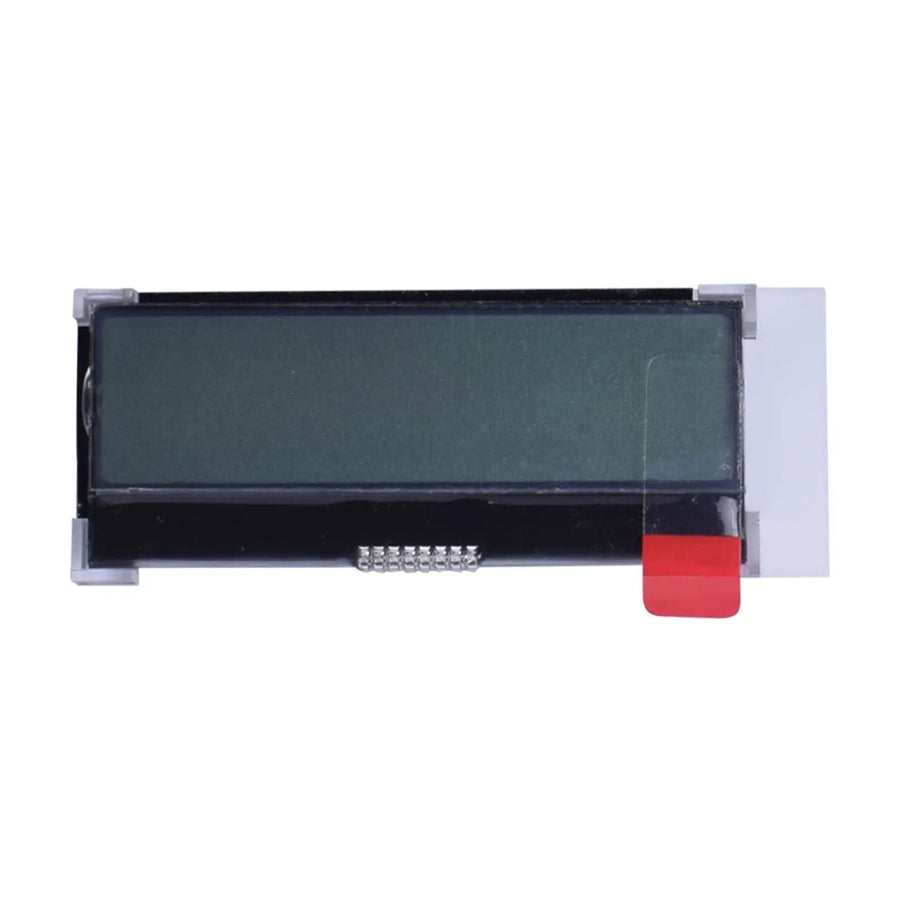

| DM-COG1602-712 | 16 × 2 COG | Transflective | ST7032I | I2C | 3.0–5.0 V | COG slim outline | White LED |

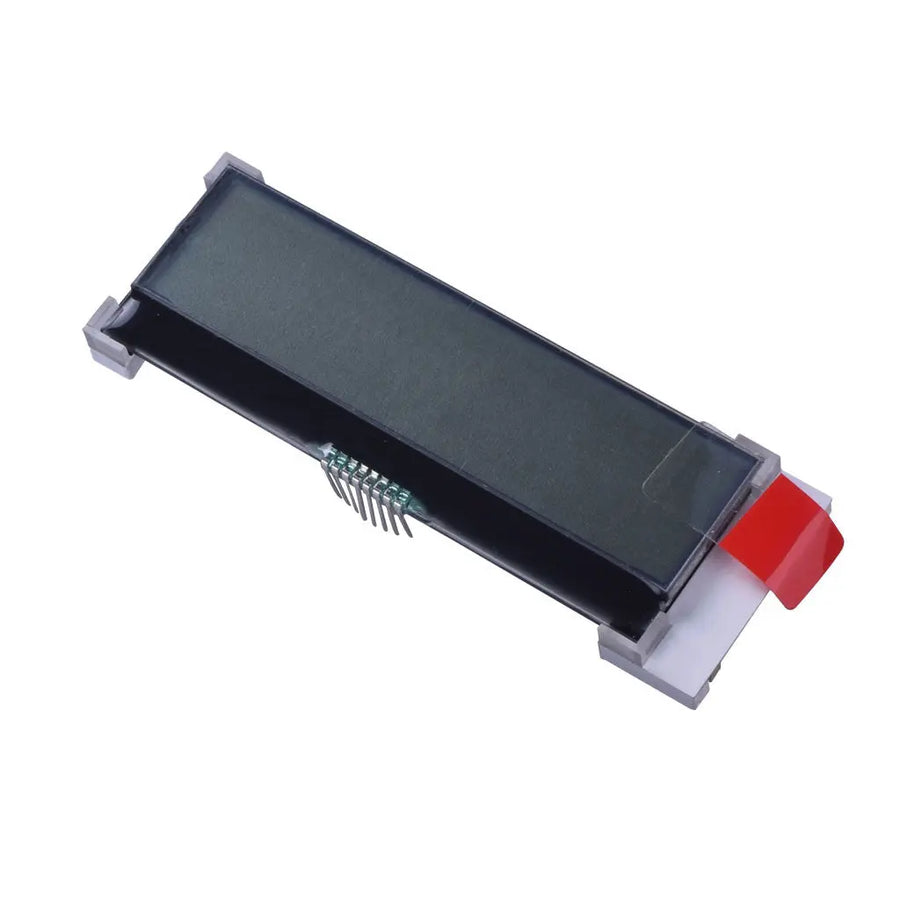

| DM-COG2002-713 | 20 × 2 COG | FSTN, transflective | ST7036I | I2C | 3.3 V typ | 74.2 × 25.2 × 6.3 mm | White LED |
| DM-LCD2002-437 | 20 × 2 | FSTN positive, transflective | ST7066U | 6800 MPU | 5.0 V | 116.0 × 37.0 × 13.9 mm | White LED |
| DM-LCD2004-442 | 20 × 4 | STN positive, yellow-green | ST7066U | 6800 4/8-bit | 5.0 V | 98.0 × 60.0 × 13.6 mm | Yellow-green LED |
More options: 24×2 FSTN 16×2 SPI / I2C 16×2 Japanese / European font 12×2 gray, blue or yellow-green · Need another combination? info@displaymodule.com
Custom Work
Custom Character LCD Options
Send us your drawing and the interface spec. One of our engineers takes a look and sends back a quote within 24 hours. Samples come with a datasheet, pinout, and init code if you need it.
-
FPC shape and connector positionRouted to your PCB footprint and mounting direction.
-
Interface matchingI2C is available on selected COG modules; selected PCB character LCD modules are available with SPI or I2C.
-
Character fontsStandard CGROM sets plus Japanese and European font options.
-
Backlight and fluidWhite, yellow-green or blue LED; STN or FSTN fluid for your temperature range.
-
ConstructionCOB and COG builds, cover glass, driver and adapter boards.
About Our Factory
Built and Tested In-House
ISO-class cleanroom assembly
Bonding and backlight integration run in a controlled cleanroom line.
Micron-level COG bonding
Driver IC bonded directly on glass; FPC integration is automated.
100% tested before shipment
Optical and electrical inspection on every module — luminance, chromaticity, dead pixels.
How We Work
From Specification to Mass Production
Evaluation
Spec and drawing review; quote back within 24 hours.
Prototyping
Samples with init code and bring-up support.
Design lock
Drawing, firmware and golden sample signed off.
Mass production
Bulk lead time about 3 weeks, 100% tested.
Lifecycle support
EOL notice and last-time-buy planning.
Where It Works
Where These Modules Are Used
01
Industrial control panelsStatus lines and menus on PLC and machine interfaces.
02
Test and measurementReadouts on bench instruments and field meters.
03
Energy meteringTariff and consumption data in −20 °C to +70 °C service.
04
Medical and lab devicesClear text display where touchscreens are impractical.
05
POS terminals and kiosksOperator and customer text prompts.
06
Appliances and audioMode, volume and timer lines on front panels.
Bulk Discounts
Volume Pricing on the Same Part Number
Discounts kick in automatically at checkout on every standard module. Same part number — no paperwork when you scale up.
5%10–49 pieces
10%50–199 pieces
15%200–499 pieces
20%500+ pieces
No MOQ on standards
Order one piece or ten thousand on the same SKU.
Stock, not queue
Samples ship now. Bulk runs take about 3 weeks.
Sourcing service
Can't find a panel? We source it through our distributor network.
24/7 engineering support
Init code, pin review and integration help included.
Get Volume Pricing
Or send your BOM target directly to info@displaymodule.com.
Buy With Confidence
Clear Terms Before You Pay
Secure Stripe paymentVisa, MasterCard, Amex, Discover — we receive only the payment state, never your card details.
DHL / UPS 3–5 daysExpress delivery free on orders over $800 under 2 kg; tracked standard mail available.
5-day return windowReturn or exchange accepted within 5 working days of receipt.
30-day fault replacementFaulty products are replaced within 30 days — every unit ships 100% tested.
How to Quote
What to Send for a 24-Hour Quote
- Format and mode — e.g. 16×2, STN or FSTN, positive, transflective.
- Quantity — sample count now, annual volume for tiered pricing.
- Interface and voltage — 6800 4/8-bit, I2C or SPI; 5.0 V or 3.3 V.
- Backlight and font — white, yellow-green or blue; JP/EU font if needed.
- Mechanical limits — outline, view area, FPC direction; drawing if available.
- Environment — operating temperature and target schedule.
Quick Answers
Common Questions
What is the minimum order quantity?
There is no MOQ on standard character LCD modules. You can order a single sample from stock; volume pricing starts at 10 pieces.
How fast can I get samples and production units?
Standard samples ship from stock immediately. Factory bulk orders have a lead time of about 3 weeks. DHL/UPS delivery takes 3-5 business days and is free for orders over $800 under 2 kg.
Which interfaces and supply voltages are available?
Most modules use a 6800-series parallel interface in 4-bit or 8-bit mode. I2C is available on selected COG modules; selected PCB character LCD modules are available with SPI or I2C. Standard logic supply is 5.0 V, and 3.3 V COG versions cover 3.0 to 5.0 V.
Can you customize fonts, backlight or the FPC?
Yes. Options include Japanese and European character fonts, white, yellow-green or blue LED backlights, custom FPC shape and connector position, cover glass, and driver or adapter boards. Engineering support includes initialization code.
What quality checks do the modules pass?
Every module is optically and electrically tested before shipment, covering luminance, chromaticity and dead pixels. Assembly runs in an ISO-class cleanroom with micron-level COG bonding.
What if a module arrives faulty?
You can request a return or exchange within 5 working days of receipt, and faulty products are replaced within 30 days. Payment runs through Stripe, so we receive only the payment state, never your card details.
More Resources
Related Displays and Resources
Related displays
Engineering notes
Get In Touch
Get Your Character LCD Quote Within 24 Hours
Email us your format, quantity, and interface — we'll reply with pricing, stock status, and a datasheet. Office hours Mon–Fri 9:00–17:00 UTC+8.
Email: info@displaymodule.com · Phone: +86-574-8756-6539
